Four Ways to Heat a Soldering Tip, and What Each One Costs You

Every soldering station does the same job: put heat into a tip and hold it there. What differs is how the heat gets in, and that single choice determines almost everything else — how fast the iron recovers, how precisely it holds temperature, how long a tip lasts, and what you pay for it.

There are four architectures in common use. They are worth understanding separately, because marketing language tends to blur them together.

1. A separate heater with a slide-on tip

This is the classic arrangement, and still the most common at the low end. A heating element sits inside the handle or a ceramic former, and the tip slides over or onto it.

The element is almost always a resistor — a nichrome winding or a sputtered resistive film — usually potted in ceramic. The word “ceramic” describes the insulator and the former, not a fundamentally different way of making heat. A separate thermocouple or thermistor provides feedback.

The defining characteristic is the thermal path. Heat is generated in one component and has to conduct across a mechanical interface into another component before it can reach the work. That interface is a thermal resistance, and it is unavoidable — the tip has to be removable, so it cannot be bonded to the heater.

Two consequences follow. The sensor sits well behind the working face, so what it reports is not what the joint experiences. And because the control loop only sees a change after heat has travelled back up the path, the station has to overshoot or undershoot before it can correct.

2. The integrated cartridge

A refinement rather than a different principle. The heater and the sensor are built into the replaceable tip itself, so the tip is the cartridge.

The heating mechanism is still resistive, but the thermal path is much shorter, the sensor is much closer to the working end, and tip changes are faster and more repeatable. This is the architecture behind the widely copied cartridge families that dominate the mid-range.

Its cost is proprietary consumables. The cartridge is the tip, the heater and the sensor at once, so when any part of it dies, you replace all three.

3. Induction — eddy currents in the tip

Here the principle genuinely changes. Instead of generating heat in one place and conducting it somewhere else, you generate it inside the tip.

A high-frequency alternating current is driven through a coil, producing an alternating magnetic field. That field induces circulating currents — eddy currents — in the tip body. The tip’s own electrical resistance turns them into heat. In ferromagnetic tips there is a second contribution from magnetic hysteresis, as domains flip back and forth, though eddy-current losses usually dominate.

Because the heat is made in the tip, there is no interface between heater and tip to conduct across. That is the entire architectural argument, and it is a real one.

The skin effect decides where in the tip the heat lands. Induced current crowds toward the surface, and the depth it reaches depends on frequency, resistivity and permeability. For scale: in copper at 60 Hz the skin depth is about 8.5 mm; at 1 GHz it is around 2 micrometres. Thinner penetration means the current is squeezed into less material, so that layer heats faster.

Induction systems split into two families, and they are not interchangeable:

(a) Curie-point regulation. The tip contains a ferromagnetic alloy chosen so that it loses its magnetic properties at a specific temperature. Below that temperature the current is confined to a thin, high-resistance layer and the tip heats hard. At the Curie point, permeability collapses, the current spreads into the underlying copper, and heating effectively stops — then resumes when the tip cools. This is genuinely elegant: no sensor, no control loop, no calibration, and no way for the electronics to make a mistake.

The trade-off is that the temperature is a property of the alloy. One tip, one temperature. Changing temperature means changing the cartridge, and the cartridges are expensive. Systems in this family typically run in the low megahertz — 13.56 MHz is the classic figure.

(b) Sensor-regulated induction. The tip is still heated by eddy currents, but the temperature is measured by a sensor near the tip and controlled electronically. That makes the temperature adjustable — the same tip can run at 300 °C or 400 °C — at the cost of reintroducing a control loop, with all the calibration questions that come with one.

These systems typically run lower, in the few-hundred-kilohertz range — Metcal’s GT series around 465 kHz, for example.

The four, side by side

What induction actually buys you

Recovery, mostly. The headline claim is fast heat-up, but heat-up from cold is the easy case — any architecture can look good on that. The difference shows up when the tip is losing heat to a heavy joint. A conduction-based design has to drive heat across its own interface under exactly the conditions where the tip is cooling fastest, and that interface is where the delay lives. Remove the interface and the control loop has far less thermal inertia to fight.

Sensor placement. In a conduction design the sensor has to sit behind the mechanical joint, so it reports a temperature some distance from the working face. When the heat is generated in the tip, temperature sensing can be much closer to the point of work.

Nothing to burn out. There is no nichrome winding or resistive film to degrade. The tip erodes — that is a separate wear mechanism and it happens to every tip — but there is no heater element inside it to fail first.

What it costs you

Being straight about the other side, because these are real and they are why induction is not universal:

• Electronics. A high-frequency generator is more expensive and more complex than a DC element driver. The power supply has to produce hundreds of volts of clean high-frequency alternating current, and that costs money and board space.
• Power scaling. Induction designs are commonly noted as harder to scale upward in power without additional thermal management, which is one reason the architecture is less common in the highest-wattage irons.
• Tip selection. The tip has to be a suitable ferromagnetic material that couples efficiently with the field. You cannot use arbitrary copper or ceramic tips. That constrains the range of geometries available and keeps consumables proprietary.
• Curie-regulated systems specifically give up adjustable temperature entirely, and the per-tip cost is high.

Where our stations sit

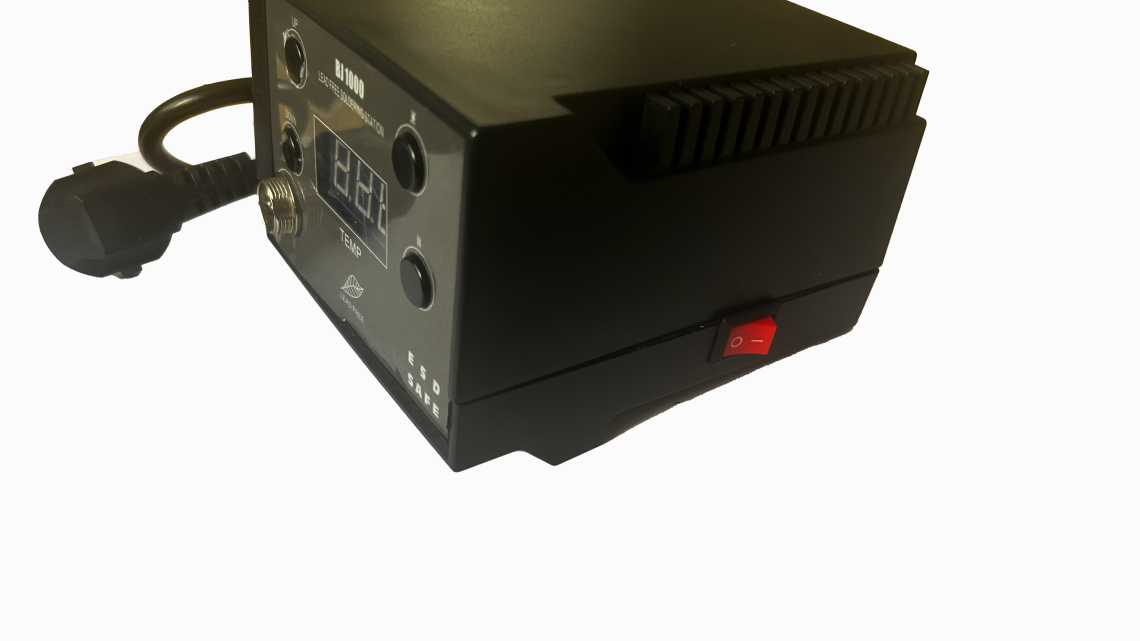

Our stations use sensor-regulated induction — eddy-current heating in the tip, with a sensor near the working end and electronic control, running at around 203 kHz. That combination is what makes the temperature range adjustable (50–500 °C on a single tip) rather than fixed by an alloy, and it is why the station supports single-point calibration.

It also means we inherit the downsides listed above. The generator is not cheap to build, and our tips are proprietary. If you want the cheapest possible iron, this is not the architecture to choose, and we would rather say so than pretend otherwise.

What to look for when comparing

• Ask where the heat is generated, not how many watts. Wattage tells you how much heat, not how quickly it reaches the joint.
• Ask where the sensor is. A sensor behind a mechanical interface is measuring something other than what your joint sees.
• Look at recovery, not heat-up time. Anyone can quote a cold-start number. Recovery under load is the figure that matches what you do all day.
• Price the consumables before you buy. Tips and cartridges are where the money goes over years, and the architectures differ by a lot.

None of these architectures is simply better than the others. They trade thermal performance against cost, adjustability and consumable price, and the right answer depends on what you solder and how often.
