Description
The BJ-1000 is a lead-free digital soldering station built around high-frequency eddy-current heating. It reaches 350 °C in under 20 seconds and holds ±3 °C, so you spend your time soldering rather than waiting for the iron to recover.
Key Features
- High-frequency eddy-current heating — pure sine wave drive, fast heat-up and quick recovery on heavy joints.
- 90W maximum power — handles lead-free work on multilayer boards and large ground planes.
- 50–500 °C adjustable with a clear 3-digit LED readout.
- ±3 °C stability — repeatable results, board after board.
- Password temperature lock — a 3-digit code keeps settings from being changed on a shared bench.
- ESD safe — anti-static design protects sensitive components.
- Single-point temperature calibration — correct the readout against your own meter; the offset is kept after power-off.
- Tip detection — displays
nOLand stops heating if the tip is not properly seated. - Frosted handle and heat-resistant cleaning sponge included.
Specifications
| Model | BJ-1000 |
|---|---|
| Maximum power | 90W |
| Heating method | High-frequency eddy current (pure sine wave) |
| Temperature range | 50 °C – 500 °C (122 °F – 932 °F), adjustable |
| Temperature stability | ±3 °C |
| Heat-up time | Room temperature → 350 °C in under 20 seconds |

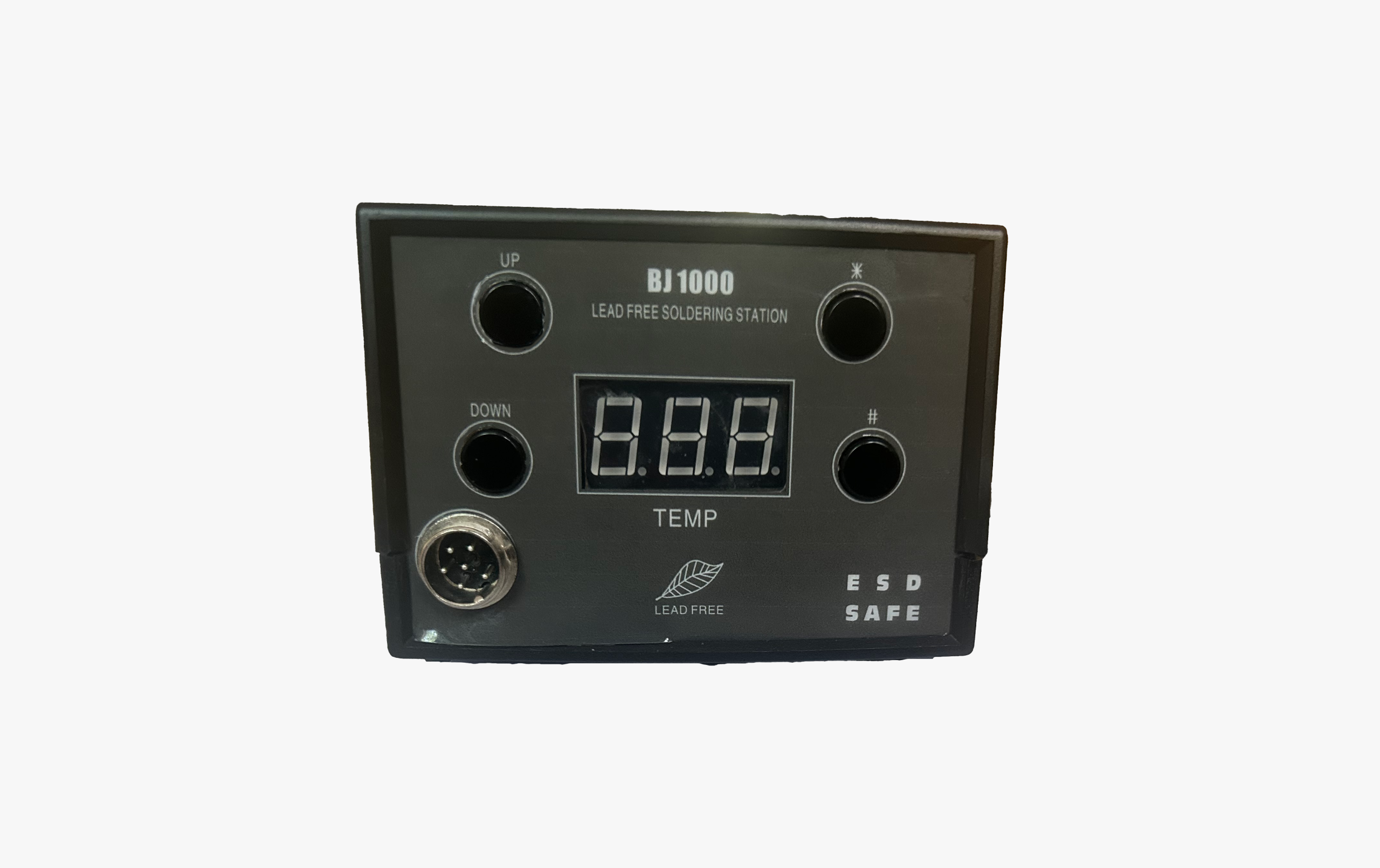

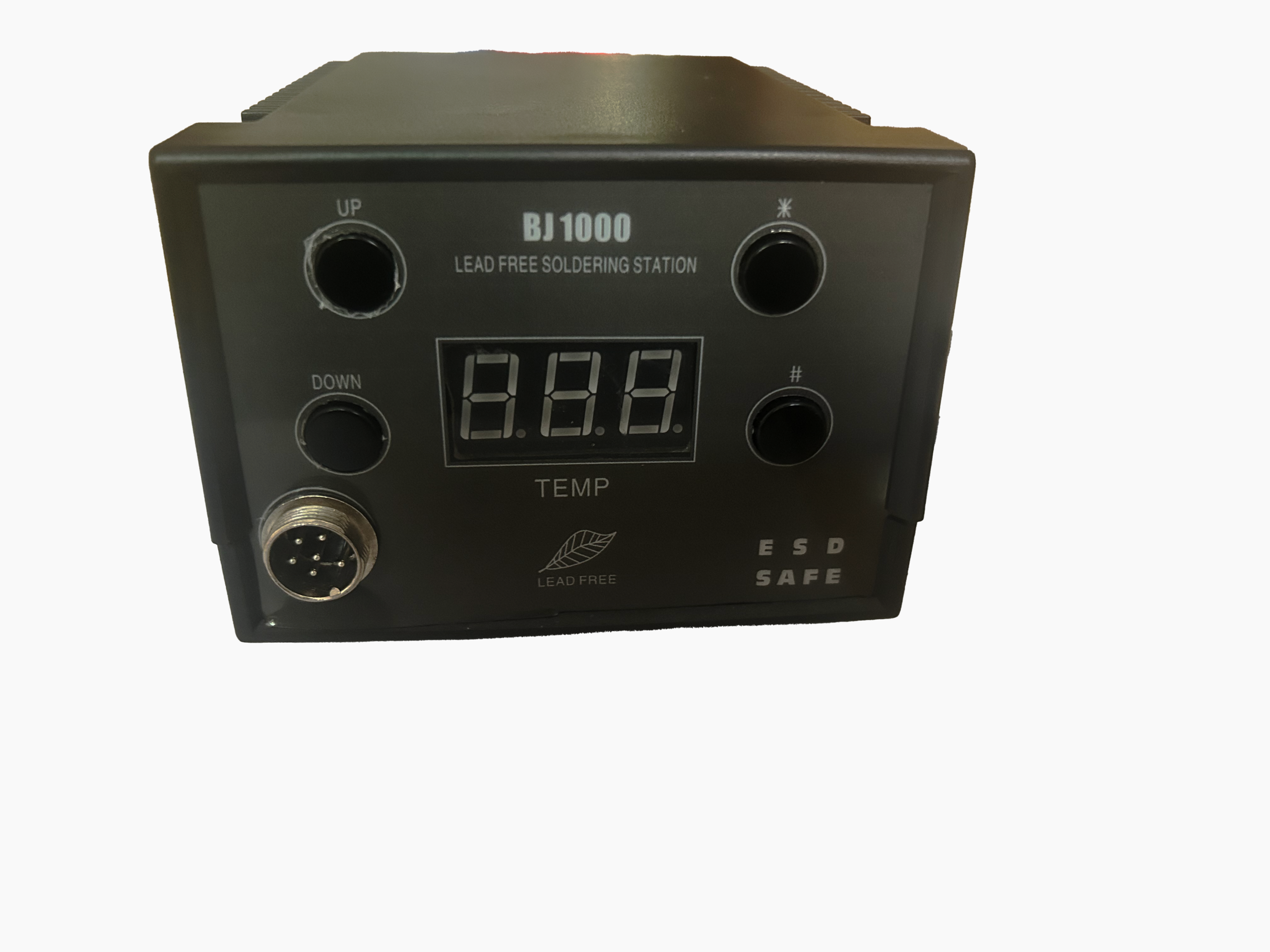

| Display | 3-digit LED |
| Temperature lock | 3-digit password (000–999) |
| Tip type | High-frequency eddy-current tip |
| Tip detection | Yes — shows nOL and stops heating if the tip is not seated |
| Calibration | Single-point; offset stored and retained after power-off |
| ESD protection | Yes |
| Power supply | AC 220V ±10%, 50 Hz |
| Dimensions | 120 × 90 × 50 mm |
| Weight | approx. 0.8 kg |
Measured performance
The plot below is an actual oscilloscope capture from the production design — not a rendered
illustration.
Output waveform measured with a SIGLENT oscilloscope (10× probe):
203 kHz, 210 V peak-to-peak, clean sine. Pure sine wave drive is one of
the design characteristics of this station — see the specifications above.
Please note: this model is supplied for AC 220V / 50 Hz mains. Check that this matches your local supply before ordering.
